Low-Voltage Distribution Transformers Unitrans Power LLP offers a comprehensive range of single-phase and three-phase low-voltage distribution transformers, engineered and manufactured to meet stringent IS, NEMA, ANSI, IEEE, and DOE standards. Designed for reliability, safety, energy efficiency, and long-term performance, our low-voltage transformers provide dependable power distribution solutions for a wide range of commercial, industrial, and utility applications. With ratings of up to 500 kVA, our transformers can be custom-designed to meet specific client requirements and application needs. Each transformer is engineered to deliver optimal performance under varying operating and load conditions. At Unitrans Power LLP, we focus on delivering transformer solutions that ensure efficient power distribution, safe operation, reduced losses, and long-lasting reliability—meeting the evolving demands of modern industrial, commercial, and utility power networks. Design & Construction Features Premium-quality materials and advanced engineering design Robust and durable tank construction High-efficiency, low-loss magnetic cores Precision-engineered windings for reliable performance Designed for enhanced safety and operational reliability Compliance with recognized national and international standards Customization available to suit specific project requirements Reliable Power Distribution. Engineered for Performance. Built for the Future.

Solar Transformers – High-Efficiency Solutions by UniTrans Power LLP UniTrans Power LLP manufactures high-performance Solar Transformers engineered to deliver efficient, reliable, and stable power conversion for modern solar energy systems. Designed for both inverter-side and grid-side applications, these transformers help minimize energy losses while maintaining excellent thermal performance and operational reliability under fluctuating load conditions. Our solar transformer solutions are available in distribution, inverter-duty, and windmill configurations, with flexible designs tailored to meet the specific electrical and operational requirements of renewable energy projects. Key Advantages High-Efficiency Performance: Optimized designs help reduce power losses and improve overall energy conversion efficiency. Harmonic-Tolerant Design: Engineered to handle harmonics and unbalanced loads commonly associated with solar inverters. Step-Up & Step-Down Capability: Suitable for voltage transformation across inverter, collection, and grid-interconnection systems. Superior Insulation & Cooling: Advanced insulation and cooling arrangements support reliable operation and extended service life. Flexible Electrical Configuration: Customized winding arrangements and vector groups accommodate diverse solar project requirements. Reliable Under Variable Loads: Designed for stable performance across changing generation and loading conditions. Technical Features High-efficiency transformer design for reduced energy losses Excellent thermal performance for continuous operation Robust insulation system for enhanced reliability Harmonic-resistant design for inverter-based applications Flexible winding and vector-group configurations Suitable for variable and fluctuating renewable-energy loads Engineered for long-term operational reliability Applications UniTrans Power Solar Transformers are suitable for a wide range of renewable-energy applications, including: Utility-scale solar power plants Grid-connected solar installations Hybrid solar power systems Solar inverter applications Inverter-side step-up and step-down systems Renewable energy collection and grid-interconnection systems Wind and solar hybrid power projects Solar Transformers for Global Renewable Energy Projects With a focus on efficiency, reliability, durability, and application-specific engineering, UniTrans Power LLP provides solar transformer solutions designed to support the evolving requirements of renewable energy infrastructure. Our Solar Transformers help optimize power conversion, manage inverter-related electrical conditions, reduce energy losses, and ensure dependable power delivery from renewable generation systems to the electrical grid. UniTrans Power LLP — Engineering Reliable Transformer Solutions for a Sustainable Energy Future.

Unitrans Power LLP offers a complete range of Dry Type Vacuum Pressure Impregnated (VPI) Transformers, designed for high reliability, durability, and low maintenance in demanding indoor and outdoor applications. Manufactured in compliance with IS, IEC, NEMA, ANSI, IEEE, and ISO standards, our VPI transformers are ideal for environments requiring high insulation performance, thermal stability, and mechanical strength – including data centers, industrial facilities, commercial complexes, and utility networks.The VPI process ensures primary and secondary windings are fully impregnated with epoxy varnish under vacuum and pressure, providing superior dielectric strength, enhanced insulation, and protection against moisture, dust, and environmental contamination. This results in long-lasting, reliable performance, even under harsh operating conditions. Technical Features Rating: Up to 5000 kVA Voltage: 480 V – 36 kV Frequency: 50 Hz or 60 Hz Cooling Class: ANAF or AN Temperature Rise: 60°C, 55/65°C Winding Material: Aluminium or Copper Standards: IS, IEC, NEMA, ANSI, IEEE, ISO Design Highlights VPI-impregnated windings for superior insulation and moisture resistance Excellent thermal performance and mechanical strength High dielectric strength with minimal partial discharge Optional IP55 enclosures (NEMA 3R/4X) for dust and rain protection F and H class insulation for high-temperature tolerance (155°C – 180°C) Quality Control Unitrans Power LLP follows ISO 9001:2015 quality standards, with stringent inspections and advanced testing at every production stage. Our quality management ensures maximum reliability, safety, and performance for every VPI transformer we deliver. Unitrans Power LLP delivers high-performance Dry Type VPI Transformers that combine safety, reliability, and efficiency, providing dependable power distribution for utilities, industries, and specialized applications worldwide.

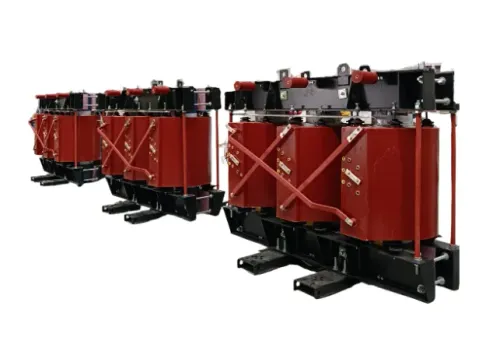

Unitrans Power LLP is a leading manufacturer of Dry Type (Cast Resin) Transformers, Core Coil Assemblies, Transformer Tanks, CSS, and other transformer accessories, based in India. We specialize in producing dry-type transformers with ratings from 50 kVA to 5000 kVA and voltages from 440 V to 36 kV, continuously innovating through R&D for future-ready solutions. Our expertise ensures high-quality, reliable, and long-lasting performance for diverse power distribution needs. Unitrans Cast Resin Transformers (CRT) are particularly suitable for moisture-prone and harsh environments. The primary and secondary windings are fully encapsulated in epoxy resin, providing superior insulation and preventing moisture or dust from affecting performance. This non-hygroscopic design allows uninterrupted operation even in highly humid or contaminated areas. Optional metal enclosures up to IP55 (NEMA 3R/4X) further safeguard the transformer from dust, rain, and environmental stress. Technical Features Rating: Up to 5000 kVA Voltage: 480 V – 36 kV Frequency: 50 Hz or 60 Hz Cooling Class: ANAF or AN Temperature Rise: 60°C, 55/65°C Winding Material: Aluminium or Copper Standards: IS, NEMA, ANSI, IEEE, ISO Design Highlights Epoxy Resin Encapsulation for moisture and dust protection Superior thermal performance and dielectric strength Optional IP55 metal enclosure for demanding environments F and H class insulation for high temperature withstand (155°C – 180°C) Mechanically robust, shock-resistant, and long-lasting Quality Control Unitrans Power LLP follows ISO 9001:2015 standards, with stringent inspection and testing at every production stage. Advanced testing equipment and rigorous quality management procedures ensure reliability, performance, and safety in every transformer we deliver. Unitrans Power LLP continues to deliver engineered excellence in dry-type transformer solutions, combining safety, efficiency, and durability to meet the evolving needs of utilities, industries, and specialized applications worldwide.
